Product Features:

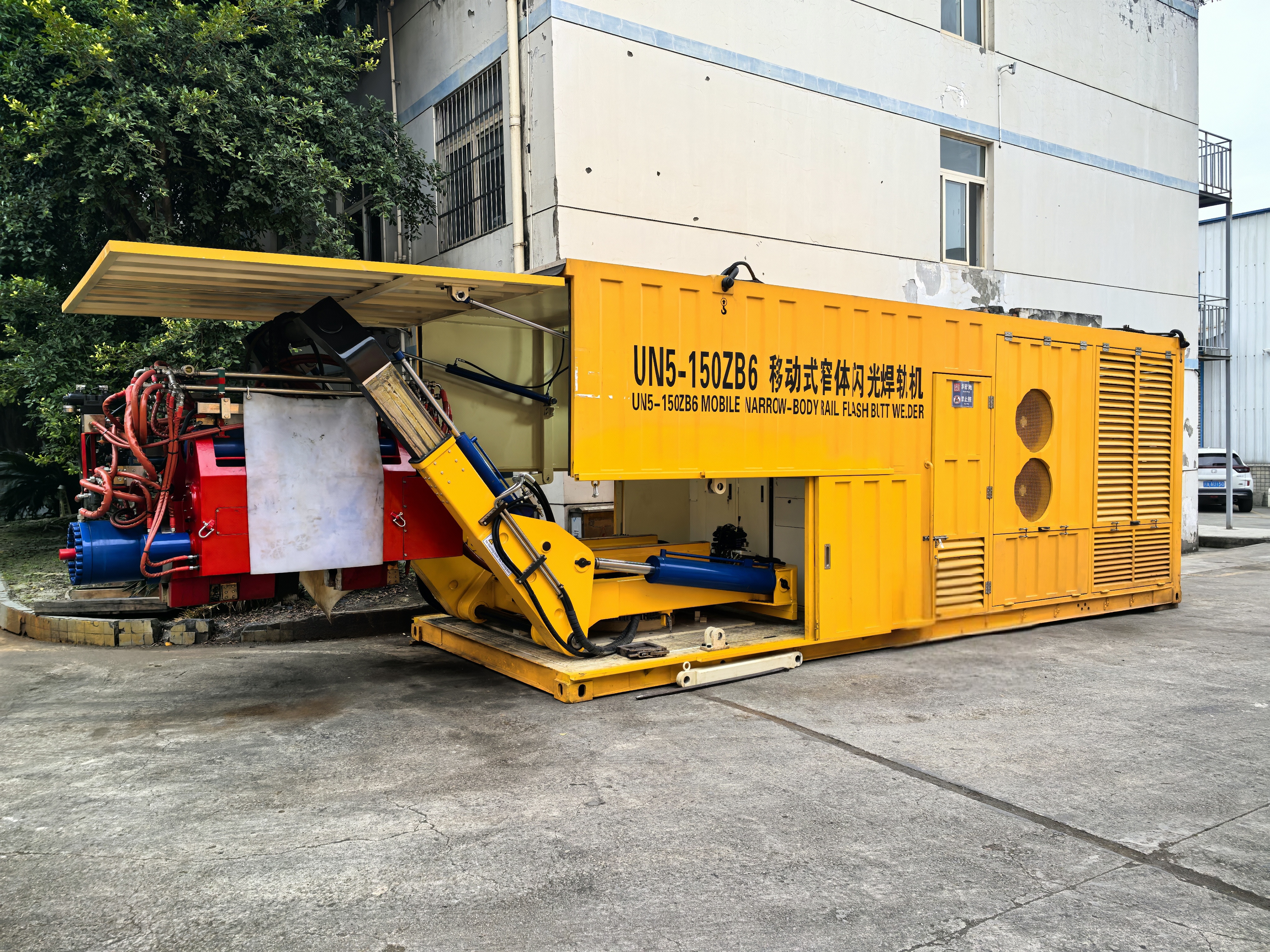

Primarily designed for flash welding of rail switch welds, this equipment features a specialized narrow-body clamp structure that enables operation in confined spaces with a minimum clearance of 130 mm.
Main Technical Parameters:
Maximum Weldable Rail Cross-Sectional Area (mm2): 10,000
Rated Pressure of Hydraulic System (MPa): 25
Rated Upsetting Force (kN): 80
Maximum Clamping Force (kN): 2,500
Weight of Welding Head (kg): 4,500
Generator Set: 400 kW power, 400 V (50 Hz)
Overall Dimensions of Welding Machine (mm): 7,270 (length) × 2,438 (width) × 2,668 (height)
Total Weight of the Machine: 21 tons (empty) / 22 tons (fully loaded)
